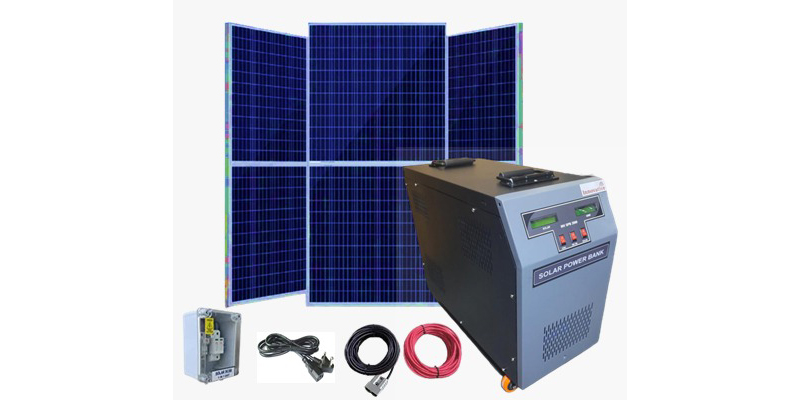

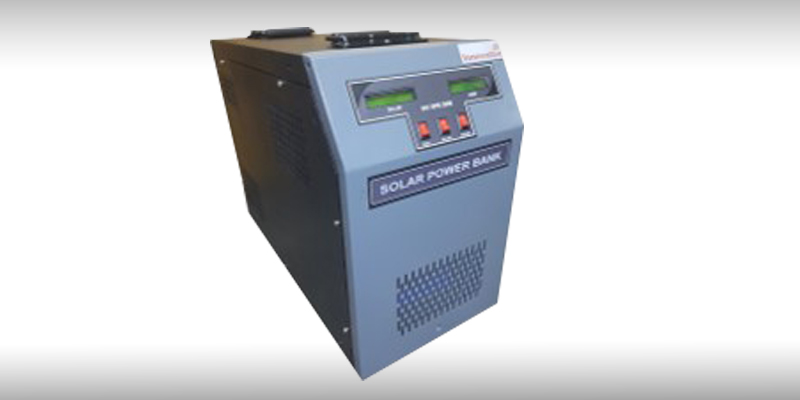

INNOVATIVE Solar Introduces state-of-the art Inverter-Battery combo unit, which is Digital Signal Processor(DSP) based pure sine wave form desirable for diverse appliances ensuring 100% safety. This works on both solar and EB. Innovative Solar Power Bank is portable moving unit with latest technologyLFP prismatic battery pack integrated inside rugged metal enclosure.
GENERAL | |
---|---|
MODEL | INV SPB 2000 |
CAPACITY | 2KVA |
OUTPUT WAVE FORM | Pure Sine wave (DSP) |
DISPLAY | LCD : SOLAR + GRID |
OPERATING TEMP | -5 to +50 Deg C |
GRID | |
---|---|
Grid Frequency Range | 50Hz±0.5Hz |
VAC INPUT RANGE | 170V TO 270V |
AC NOMINAL I/P FREQUENCY | 50Hz±0.5Hz |
MAX. AC O/P POWER | 1600W |
CONTINUOUS LOAD | 1400W |
OUTPUT | 230VAC |
AOVER LOAD PROTECTION | 10 sec @ 110% |
SOLAR | |
---|---|
VDC INPUT RANGE (SOLAR) | 40 - 80VDC |
MPPT MAX. INPUT VDC | 100 VDC |
MPPT MAX. INPUT WATTS | 2000W |
BATTERY | |
---|---|
TYPE | Deep cycle LFP Prismatic |
CAPACITY | 25.6V 100AH |
LIFE CYCLE | > 2000 |
PHYSICAL | |
---|---|
DIMENSIONS (L X W X H) mm | 600 x 280 x 500 |
WEIGHT | 52 kgs |
